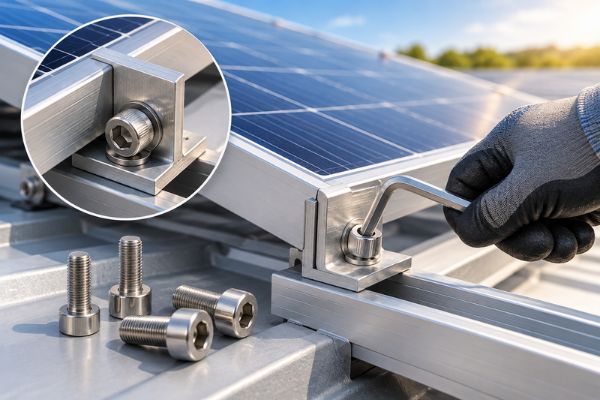

Allen Key Bolts for Secure Solar Panel Mounting
Allen key bolts help connect clamps, brackets, and other parts of a solar mounting system. Their compact heads and hexagonal sockets make them useful in places where a regular spanner may be difficult to use. For buyers looking for an Allen key bolt manufacturer and supplier in Ahmedabad, Gujarat, India, choosing the correct material, size, and length is an important part of planning a solar installation.
Solar panels remain outdoors for many years. Their mounting connections face wind, rain, heat, and daily temperature changes. A suitable bolt helps keep these connections secure when it is used with compatible mounting parts and installed correctly.
However, every Allen key bolt is not suitable for every solar structure. This guide explains why these bolts are used, how to choose them, and which installation mistakes to avoid.
What Is an Allen Key Bolt?
An Allen key bolt has a hexagonal socket inside its head. An Allen key, also called a hex key, fits into this socket to turn the bolt.
Unlike a bolt with an external hexagonal head, it does not need a spanner to grip the outside of the head. This can make installation easier where space around the bolt is limited.
The main parts include:
- Head: The upper part that holds the hexagonal socket.
- Socket: The opening where the Allen key fits.
- Shank: The body of the bolt, which may be partly or fully threaded.
- Thread: The spiral section that engages with a nut or threaded component.
In solar mounting, the bolt works as part of a complete connection. Its performance also depends on the clamp, nut, rail, and installation method.
Why Are Allen Key Bolts Used in Solar Panel Installation?
- Easier Access in Narrow Spaces
Solar mounting assemblies can leave limited space around fasteners. Panel frames, clamps, and rail sections may make it difficult to position a regular spanner.
An Allen key fits into the bolt head, allowing installers to work from above where the design provides access. This is useful for some clamp and bracket connections.
- Compact Connections
Allen socket heads can fit neatly into mounting assemblies designed for them. Depending on the head style, they may sit within a recess or occupy less space around the connection.
However, Allen key bolts come in different head shapes. A socket head bolt does not automatically sit flush with the surface. The head must match the mounting component.
- Easier Access in Narrow Spaces
Solar mounting assemblies can leave limited space around fasteners. Panel frames, clamps, and rail sections may make it difficult to position a regular spanner.
An Allen key fits into the bolt head, allowing installers to work from above where the design provides access. This is useful for some clamp and bracket connections.
- Compact Connections
Allen socket heads can fit neatly into mounting assemblies designed for them. Depending on the head style, they may sit within a recess or occupy less space around the connection.
However, Allen key bolts come in different head shapes. A socket head bolt does not automatically sit flush with the surface. The head must match the mounting component.
Where Are Allen Key Bolts Used in Solar Mounting Systems?
The exact use depends on the mounting system design. Common locations include:
| Mounting Component | Possible Bolt Function | What to Check |
|---|---|---|
| Mid clamp | Secures adjacent panel frames to the rail | Clamp design and panel frame height |
| End clamp | Holds the outer panel frame | Clamp fit and specified bolt length |
| Rail nut connection | Connects a compatible component to a rail | Thread size and nut engagement |
| Mounting bracket | Joins selected support components | Hole size, head clearance, and bolt grade |
| Adjustable assembly | Secures parts after adjustment | Approved tightening method |
Use the fasteners specified by the mounting system manufacturer. A bolt that fits into a hole may still have the wrong strength, length, or head design.
How to Choose the Right Allen Key Bolt
Check the Thread Size
Thread size must match the nut or threaded component.
For example, an M8 bolt has a nominal thread diameter of 8 mm. The mating part must also have the correct thread pitch. Avoid forcing a bolt into a nut that does not turn smoothly by hand.
Select the Correct Length
A bolt must be long enough to pass through the required parts and provide suitable thread engagement.
A bolt that is too short may engage only a small part of the nut. A bolt that is too long may touch the bottom of a closed threaded hole before the clamp becomes tight.
Check:
- Thickness of the parts being joined
- Washer thickness, if specified
- Required thread engagement
- Space below the connection
- Clamp and panel frame dimensions
Match the Head Style
Socket head, button head, and countersunk bolts have different shapes. They are not automatically interchangeable.
Choose the head style that matches the clamp or bracket. Also check whether the Allen key can reach the socket after the panel is in position.
Confirm the Material and Strength
Material affects corrosion resistance. Bolt grade or property class affects mechanical strength.
Do not select a bolt only because it looks strong or has a shiny finish. Confirm both the material and the required strength with the mounting system specifications.
SS 202 vs SS 304 Allen Key Bolts
Stainless steel bolts are available in different grades. SS 202 and SS 304 should not be treated as equal choices for every outdoor installation.
SS 304 generally offers better corrosion resistance than SS 202 in many outdoor conditions. However, the correct choice depends on the site, exposure, and mounting system requirements.
| Mounting Component | Possible Bolt Function | What to Check |
|---|---|---|
| Mid clamp | Secures adjacent panel frames to the rail | Clamp design and panel frame height |
| End clamp | Holds the outer panel frame | Clamp fit and specified bolt length |
| Rail nut connection | Connects a compatible component to a rail | Thread size and nut engagement |
| Mounting bracket | Joins selected support components | Hole size, head clearance, and bolt grade |
| Adjustable assembly | Secures parts after adjustment | Approved tightening method |
No stainless steel grade is completely protected from corrosion in every environment. Correct material selection and installation both matter.
Allen Key Bolt Sizes Available From SSP India
The product details shared for SSP India list the following options:
| Specification | Details |
|---|---|
| Product Name | Allen Key Bolt |
| Size | M8 |
| Length Options | 20 mm, 25 mm, 30 mm, 50 mm |
| Material Options | SS 202, SS 304 |
| Application | Compatible with solar mounting connections |
These options help buyers discuss their requirements. They do not mean that every listed length is suitable for every panel clamp or mounting rail.
Before ordering, share the mounting component details and confirm the required bolt specification.
Common Installation Problems and How to Avoid Them
Problem: The Clamp Remains Loose
A bolt may feel tight while the clamp is still loose. This can happen if the bolt reaches the bottom of a threaded hole before securing the parts.
What to do: Check the bolt length, clamp arrangement, and mating component. Do not solve the problem by applying more force.
Problem: The Hexagonal Socket Gets Damaged
An incorrect or worn Allen key can slip inside the socket. Poor tool alignment can also damage the head.
What to do: Use the correct key size, insert it fully, and keep the tool aligned with the socket.
Problem: Threads Become Difficult to Turn
Dirt, damaged threads, cross-threading, or stainless steel thread galling can make a bolt difficult to turn.
What to do: Inspect the threads and start the bolt by hand. Stop if resistance appears early. Use lubrication only where the fastener or mounting system instructions allow it, as lubrication changes tightening behaviour.
Problem: The Connection Is Overtightened
Excessive force can damage threads, clamps, or panel frames. It can also place too much stress on the bolt.
What to do: Follow the specified torque for the exact connection. Do not use one torque value for all M8 bolts.
Problem: The Connection Becomes Loose
Incorrect assembly, insufficient tightening, or unsuitable parts can lead to movement.
What to do: Inspect the complete connection and follow the approved assembly method. Use locking components only when specified for that system.
Problem: The Bolt Starts at an Angle
If the bolt is not aligned properly with the threaded hole or nut, it may start at an angle. This can damage the bolt threads and the mating threads.
What to do: Align the bolt and mating component correctly before tightening. Start the bolt by hand for the first few turns. If it does not rotate smoothly, remove it, check the alignment and threads, and then reinstall it correctly.
A Simple Installation Checklist
- Confirm the size, length, material, and grade.
- Check that the clamp and nut are compatible.
- Inspect the socket and threads for damage.
- Remove dirt from the mating parts.
- Start the bolt by hand to avoid cross-threading.
- Position the clamp according to the mounting instructions.
- Tighten using the specified tool and torque.
- Check that the assembly is seated correctly.
Roof work and electrical work should be handled by trained installers using suitable safety measures.
What to Share With an Allen Key Bolt Manufacturer or Supplier
Clear order details reduce the risk of receiving unsuitable fasteners. When contacting an Allen key bolt manufacturer in Ahmedabad or a solar mounting bolt supplier in Gujarat, share:
- Required thread size and pitch
- Bolt length
- Head style
- Stainless steel grade
- Required strength grade or property class
- Clamp, bracket, or rail details
- Installation location and exposure conditions
- Quantity required
- Drawings or a sample, where available
For bulk projects across India, confirm the specification before placing the full order. A sample fit check can help identify problems with head clearance, length, and thread compatibility.
Allen Key Bolt Manufacturer and Supplier in Ahmedabad, Gujarat, India
If you are searching for an Allen key bolt manufacturer and supplier in Ahmedabad, Gujarat, India, contact SSP India to discuss your solar mounting requirements.
Share your clamp type, rail details, bolt length, material preference, and quantity. These details help the team understand the connection and discuss suitable product options.
Explore the Allen Key Bolt product page and send your requirements for a quotation. Confirm current availability and the final specification before ordering.
Frequently Asked Questions
Allen key bolts provide convenient tool access in mounting assemblies designed for them. They are commonly used with compatible clamps, brackets, and rail nuts to secure solar mounting connections.
No. The required bolt size depends on the mounting system. Check the clamp, rail nut, thread pitch, length, and strength requirements before choosing an M8 bolt.
Check the thickness of the connected parts, required thread engagement, and available space. The bolt must secure the assembly without bottoming out or interfering with other components.
SS 304 generally provides better corrosion resistance in many outdoor conditions. The final choice should follow the mounting system requirements and the site’s exposure conditions.
No. Use the correct hex key size. A loose-fitting or worn tool can damage the socket and make the bolt difficult to remove later.
There is no single torque value suitable for every M8 connection. Follow the specified torque for the bolt grade, mounting component, and installation conditions.
Send the bolt size, length, head style, material, required grade, quantity, and mounting component details. A drawing or sample can help confirm compatibility.
Conclusion
Allen key bolts are useful in solar panel installation because they offer practical tool access and fit many mounting assemblies designed for socket fasteners. However, secure installation depends on choosing the correct bolt and using it properly.
Check the length, thread, material, strength, and tightening instructions before installation. For product enquiries in Ahmedabad, Gujarat, or elsewhere in India, share your solar mounting requirements with SSP India.
